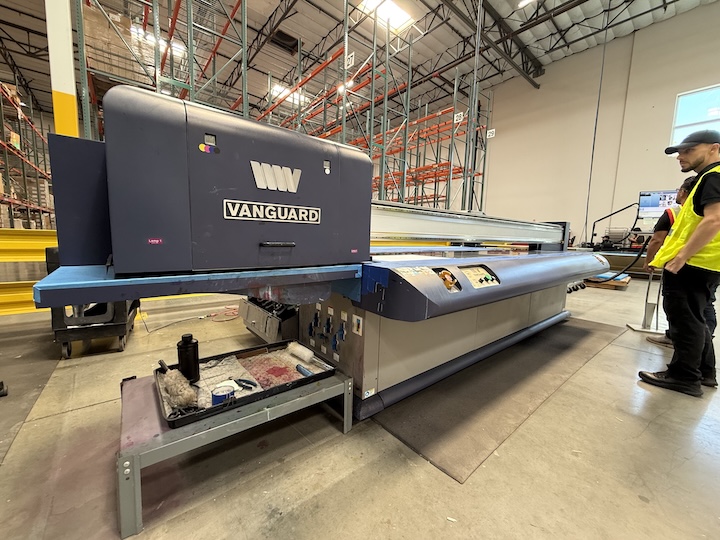

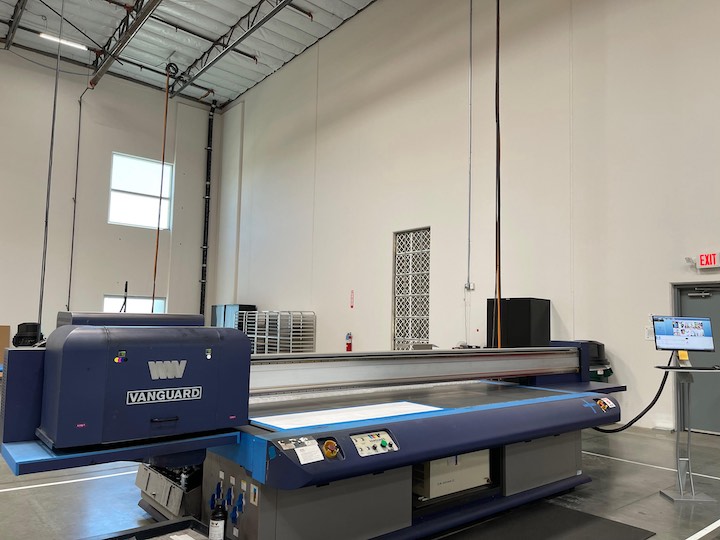

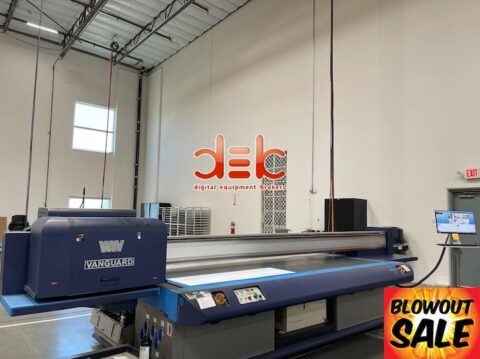

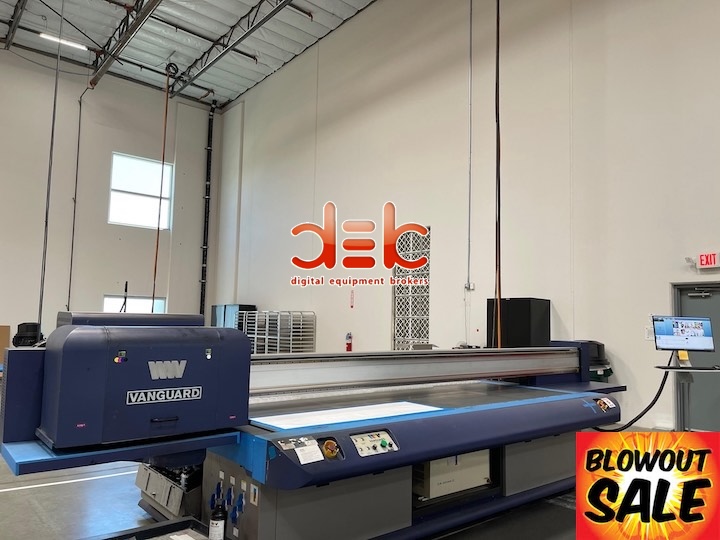

VANGUARD VK300D PRINTER BLOWOUT!

Manufacturer: SKU: 2025-09222	VANGUARD

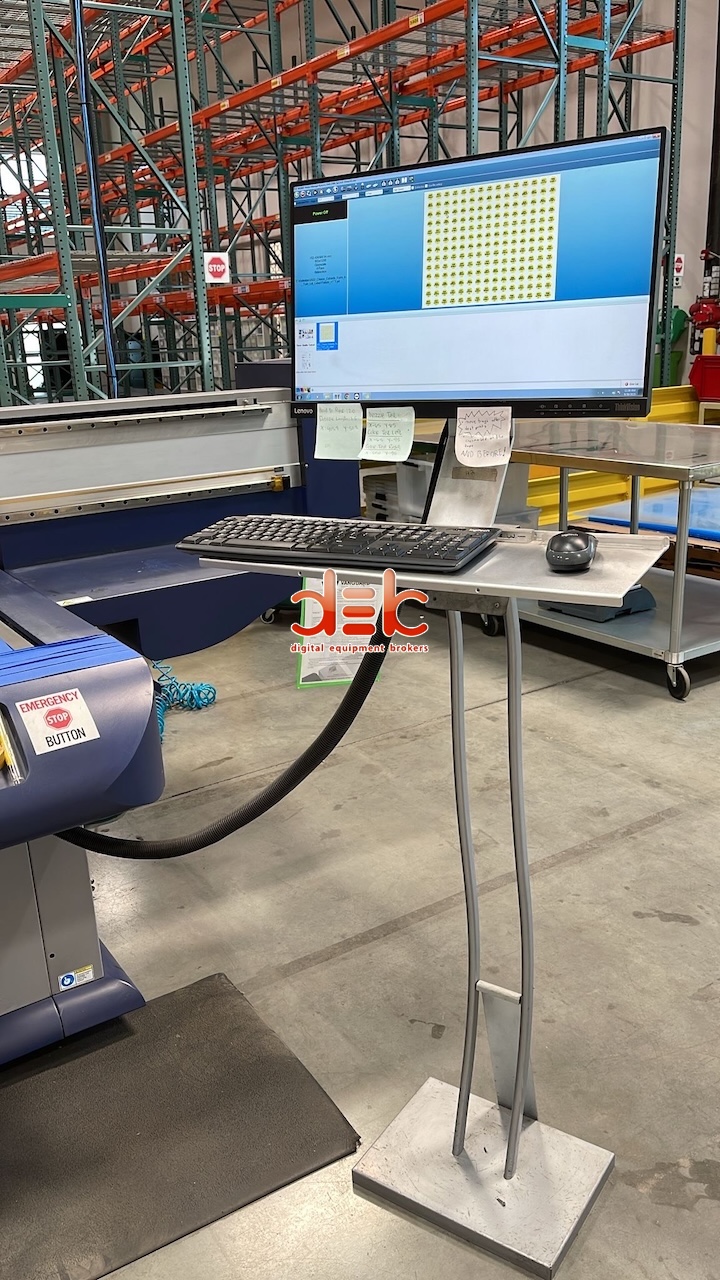

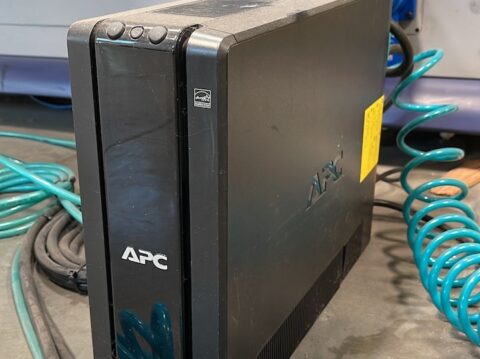

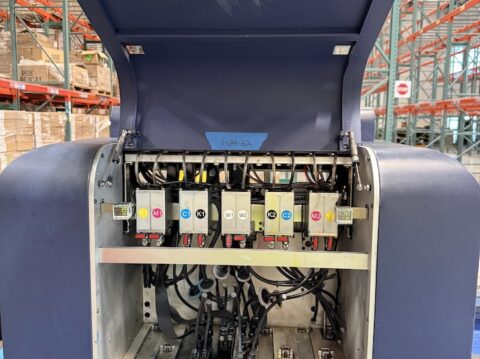

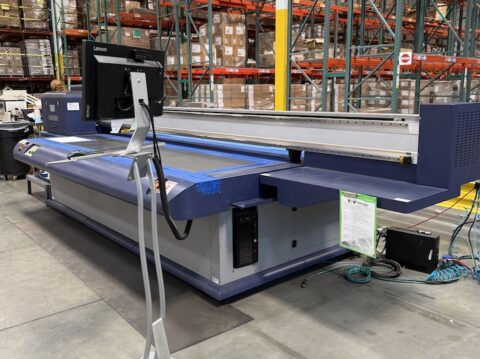

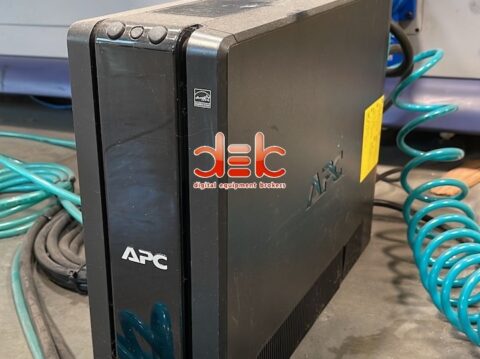

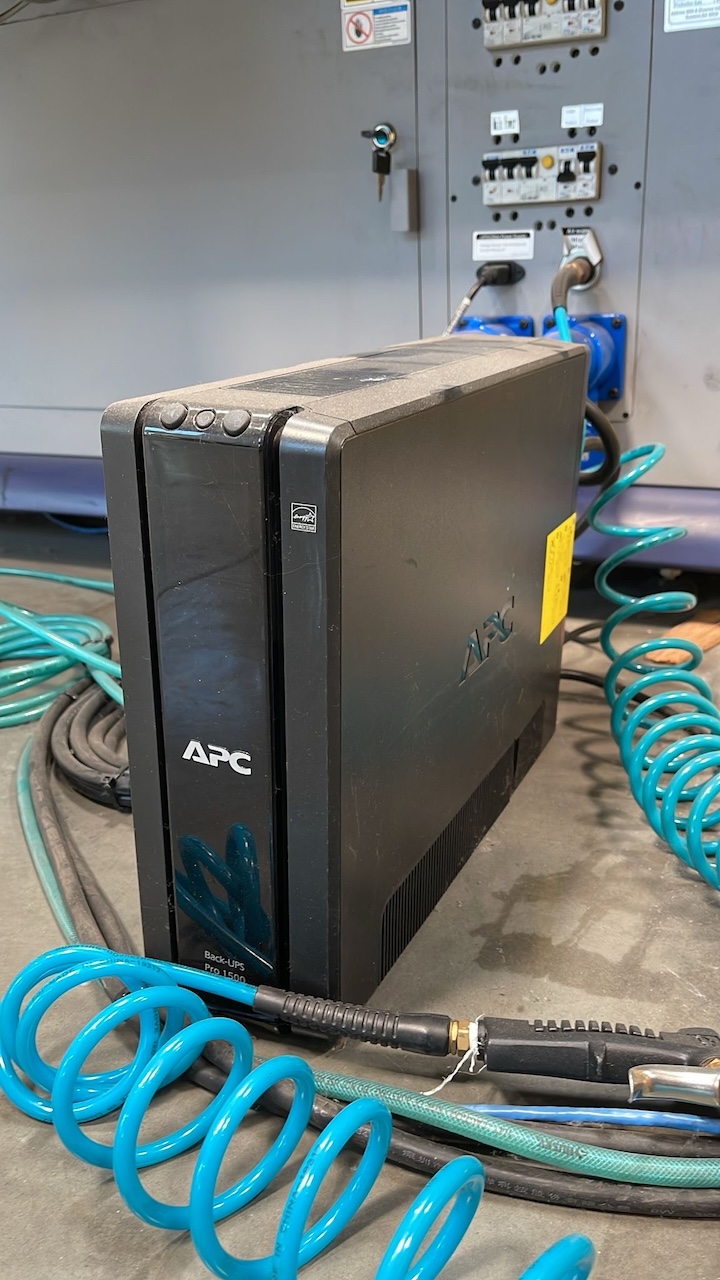

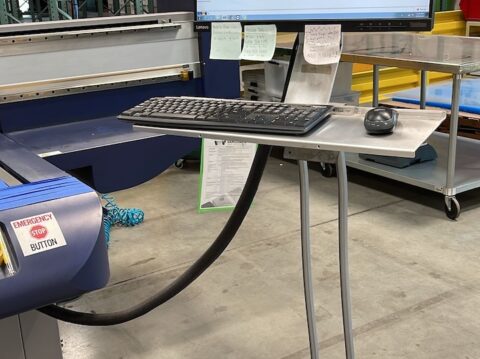

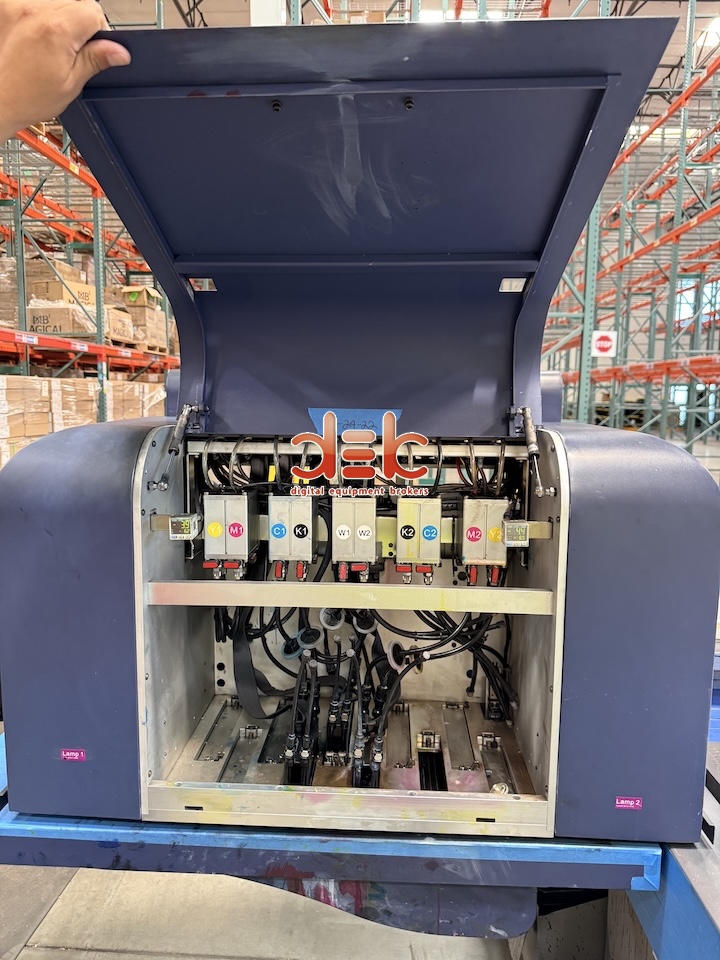

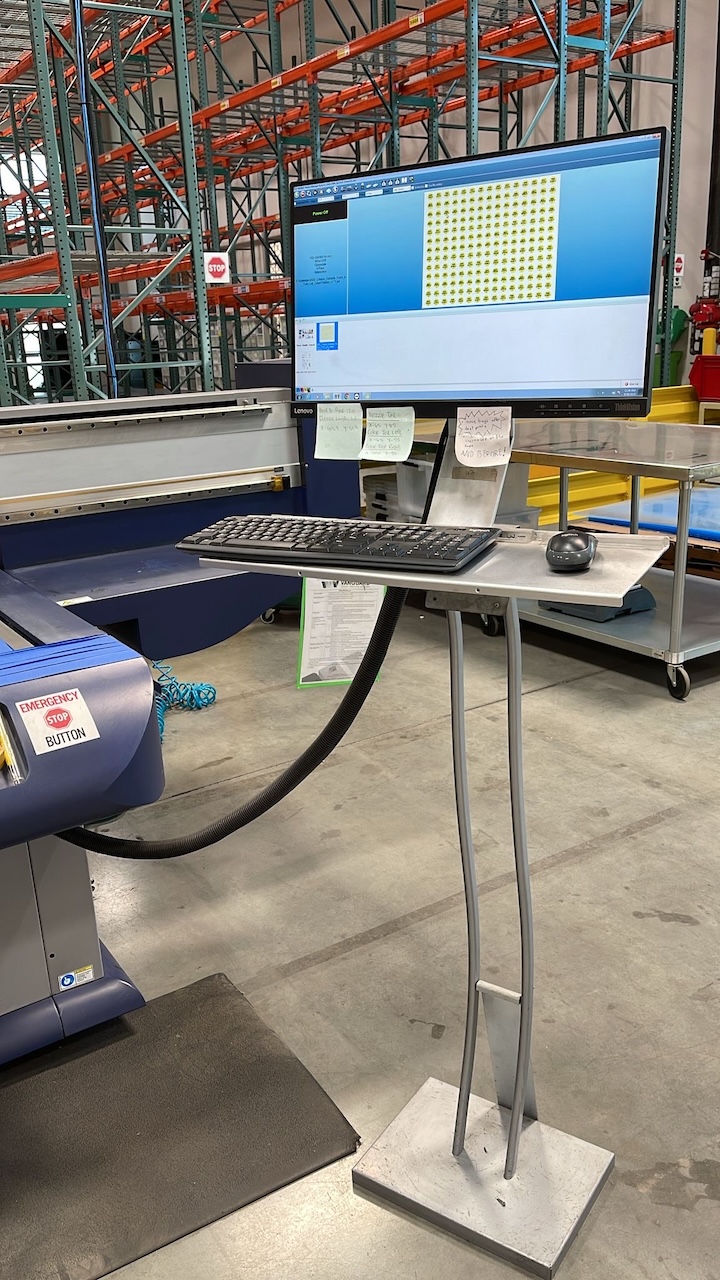

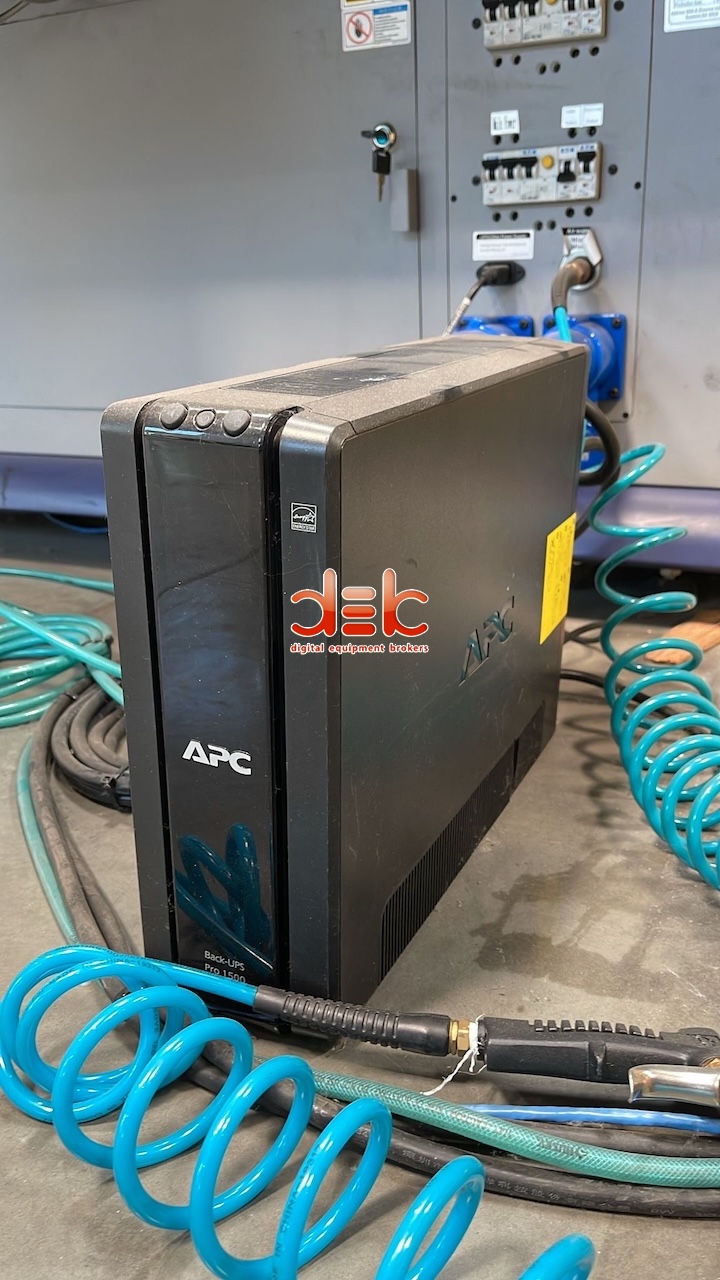

Model: VK3OOD	Seller’s statement: “Very good condition. The purchase will come with the following: 1. Vanguard Machine. 2. Lenovo Monitor + Operating Monitor Stand. 3. APC BACKUP-UPS PRO 1500 (Backup battery). 1) Black/Cyan. 2) Magenta/Yellow. 3) White. You can add up to 7 more heads for a total of 10 if needed. We installed new UV LEDs as well as new print heads. Brand new Chiller was also installed. All services were done by Vanguard. Always properly maintained and serviced.”
Year:	2018
Location: California	Fast & easy shipping available.

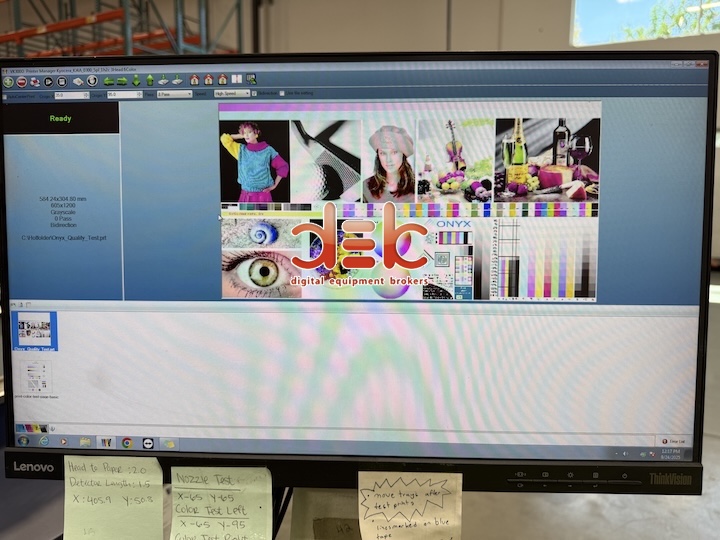

RIP/ Software:	Onyx for Vanguard.
Functional:	Yes.
Availability:	Now.
We work with a great lender that can help you get fast, easy and affordable financing: Services:	As a courteous suggestion we can offer you very good competitive shipping prices through a few different insured carriers that are responsible for your freight. Also as a courteous suggestion we have access to offer to you great pricing on certified technicians for de-installs, installs, training, service, tech support, consumables, parts, tooling, etc.

Manufacturer Specifications:

Print Speeds:
– 2 head, CMYK Configuration:    Up to 480 sq.ft.hr. | 15 boards
– 4 head, CMYKx2 Configuration: Up to 800 sq.ft.hr. | 25 boards
– 8 head, CMYKx2 Configuration: Up to 1280 sq.ft.hr. | 40 boards

Standard Features:
– BandGUARD: Virtually eliminates chromatic banding, allowing you to print at faster speeds and better quality.
– CureGUARD:  Precisely adjustable LED curing technology allows you to print to more substrates with greater control.
– StaticGUARD: Increase productivity and reduce labor by accurately printing from front to back and back to front.
– TimeGUARD:  Virtually eliminate chromatic banding, allowing you to print at faster speeds and better quality.
– StaticGUARD: Inline static suppression system reduces static charges on acrylics and other positively charged substrates.
– PrintGUARD:  Reduce time and waste with pinpoint accurate print resuming after a crash sensor has been reset.
– NoiseGUARD: Twin mufflers reduce the noise level of the powerful media vacuum pumps.
– AccuGUARD:  The metal raster strip provides the most accurate dot placement in the industry.
– MediaGUARD: Measure media thickness with our auto-height detection system in just a matter of seconds.
– AlignGUARD:  Air assisted pin registration provides precise media alignment with every print.
– PressureGUARD: Provides stability within the negative pressure system increasing the life cycle of critical components.

Specifications:

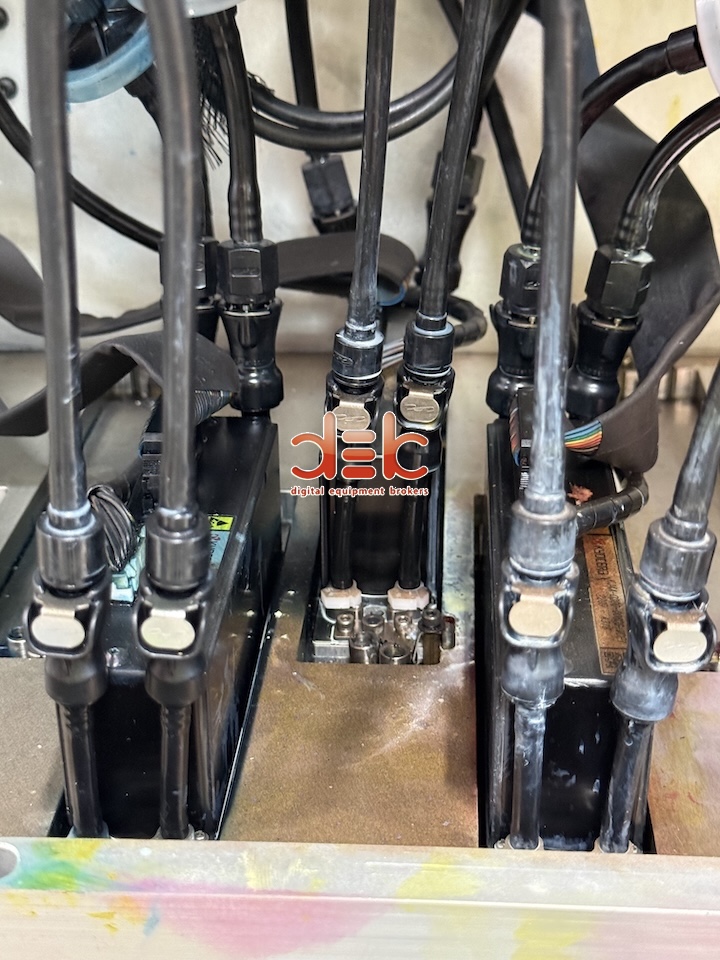

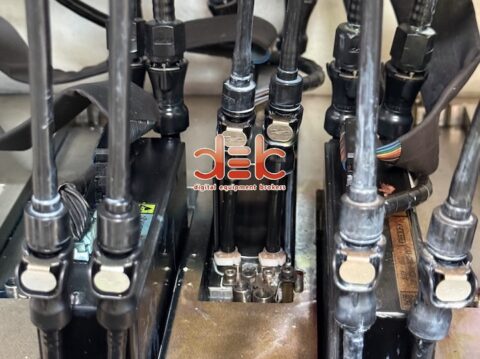

– Print Heads: Kyocera piezo greyscale print heads.
– Resolution: Up to 1800 Apparent DPI
– Base Ink Configuration: YMCK

– Max Ink Configuration: YMCK-WW-KCMY X 2

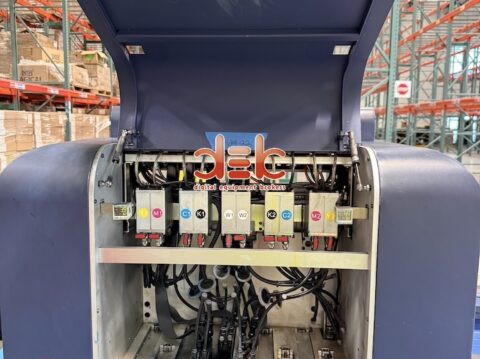

– # of Print Head Slots: 10 (5 x 2 rows)
– Connectivity: 1000 Base T Ethernet

– Software: Integrated Vanguard Print Controller

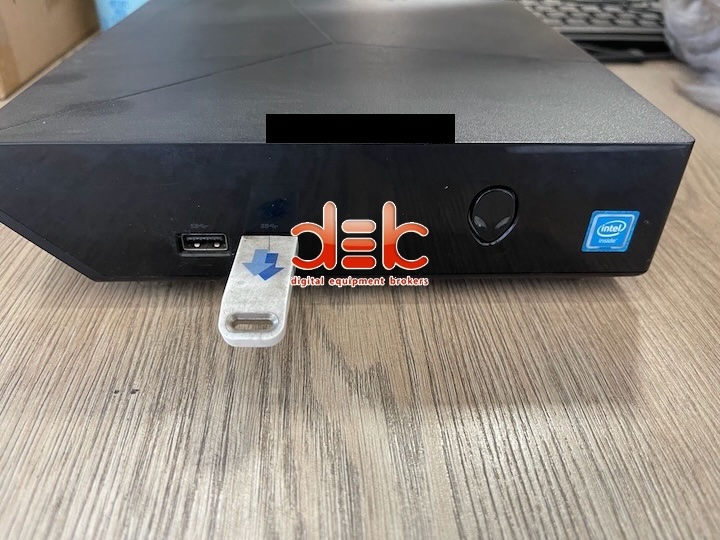

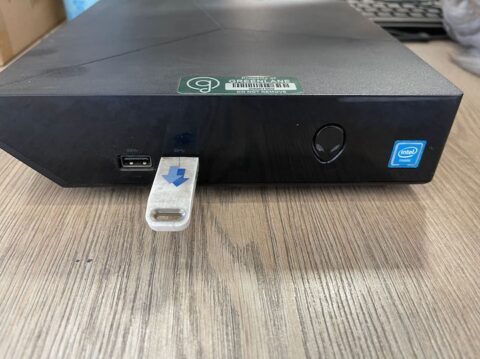

– Included PC: Windows 7 Professional 64-Bit OS with Touch-Screen control.
– Included RIP Software: Onyx Thrive Vanguard Edition
– Ink Curing System: Liquid Cooled LED

– Power Requirements: (2) AC 220V, Single Phase, 30A
– Operating Temperature: 68-86 F
– Operating Humidity: 40-80% (non-condensing)

– Max. Print Size: 61″ x 123″
– Max. Print Thickness: 4″ Thick
– Max Media Weight: 300 lbs.

– Machine Dimensions: 18′ 7″ W x 8′ x 3″ D x 4′ 7″H
– Operating Dimensions: 22′ x 11′
– Min. Door Clearance: 96″ x 80″

– Crate Dimensions: 19′ 3″ W x  7′ 5″ D x 5′ 10″ H
– Weight | Crated Weight: 4153 lbs. | 4872 lbs.
